Tsarin kwantena na Rana mai naɗewa
Tsarin kwantena na Rana mai naɗewa wani kwantena ne na hasken rana tare da ajiyar batir, wanda aka ƙera don haɗa haɓakar hasken rana, ajiyar makamashi, da jujjuya wutar lantarki a cikin ƙaramin tsari ɗaya. Yana taimaka wa masu amfani ƙaddamar da tsaftataccen wutar lantarki cikin sauri a cikin nesa, wucin gadi, ko raunana{1} wurare ba tare da gina ƙayyadaddun kayan aikin hasken rana daga ƙasa ba.
Tare da nau'ikan PV masu ninkawa, ma'ajiyar baturi na lithium, inverter, da rarraba wutar lantarki da aka haɗa cikin tsarin kwantena, wannan kwandon ajiyar batirin hasken rana yana goyan bayan samar da wutar lantarki mai sassauƙa don kashe wuraren grid, ayyukan gine-gine, martanin gaggawa, ikon tsibiri, da aikace-aikacen makamashi na gauraya.
An inganta don Bukatun Makamar ku
Hadakar Solar + Ajiya
Tsarin yana haɗa nau'ikan nau'ikan PV masu ninkawa, ajiyar baturi, inverter, da rarraba wutar lantarki a cikin rukunin wutar lantarki guda ɗaya, yana taimakawa samar da tsarar rana da adana makamashi daga tsarin iri ɗaya.
Ƙarin Kashe Ƙarfin Wuta{0}
A matsayin kwandon hasken rana tare da ajiyar baturi, yana iya adana makamashin hasken rana yayin rana kuma yana tallafawa lodin wurin lokacin da hasken rana ba shi da kwanciyar hankali, yana taimakawa inganta ci gaban wutar lantarki a kashe{0}}grid da rauni{1} wuraren grid.
Saurin Aiwatar da Aikin
Tsarin hasken rana mai naɗewa da haɗaɗɗen tsarin batir yana taimakawa rage daidaitawar kayan aiki daban-daban, filayen filaye, da aikin shigarwa, yana sauƙaƙa tsarin turawa akan wuraren wucin gadi ko nesa.
Karamin Tsarin Yanar Gizo
Ƙirƙirar PV, ajiyar baturi, inverter, da kayan rarrabawa an haɗa su cikin tsarin da aka ƙulla, suna taimakawa adana sararin samaniya da sauƙaƙe tsara shimfidar wuri don samar da wutar lantarki{0}.
Ƙayyadaddun bayanai
| Kwantena | ||
| Nau'in Kwantena | 10 GP | 20HQ |
| Ƙarfin PV | 38.88 kW | 92.16 kW |
| Ƙarfin Ajiye Makamashi | 80 kWh | 200 kWh |
| Matsayin Kariya | IP65 | |
| Matsayin Kariyar Lalacewa | C5 | |
| Tsawon Buɗewa × Nisa | 82.4×2.9 m | 86.4×6 m |
| Nauyi | 7 t | 14 t |
| Yanayin yanayi | -20 ~ +50 digiri | |
| Danshi na Dangi | 0-95% (ba {2}) | |
| Tsayi | 4000 m, >Tsawon mita 2000 | |
| PV Module | ||
| Ƙarfin Module | 540 W | 540 W |
| Buɗe Wutar Lantarki | ~40 V | ~49 V |
| Gajeren Kewayawa Yanzu | 16.32 A | 18.55 A |
| Tsarin Tsarin | 18 inji mai kwakwalwa/Zari | 16 inji mai kwakwalwa / Zaren |
| Yawan | 72 guda | 128 guda |
| Baturi | ||
| Nau'in Baturi | LFP 100 Ah | |
| Kunshin Kanfigareshan | 1P16S | |
| Kanfigareshan Tarin Batir | 1P128S | |
| Ƙarfin Ƙungiya Guda Daya | 40.96 kWh | |
| Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwaƙwalwa | 352–467.2 V | |
| Caji/Cire Yanzu | 50 A | |
| Yawan Rukunin Batir | 2 tari | 5 gungu |
| Hybrid Inverter | ||
| Inverter Power | 15 kW | 50 kW |
| Tsarin Wutar Lantarki | 1000 V | |
| Ƙimar Wutar Lantarki | 600 V | |
| MPPT Voltage | 200–850 V | 150–850 V |
| MPPT Trackers | 4 tashoshi | |
| Max Current / MPPT | 20 A | 42 A |
| Ƙarfin fitarwa mai ƙima | 15 kW | 50 kW |
| Wutar Lantarki na AC | 230/400 V | |
| Yawan Fitar da AC | 50/60 Hz | |
| Loda | ||
| Ƙarfin Ƙarfi | 15 kW | 50 kW |
| Max Single Inductive Load Power | 2 kW | 6 kW |
| Diesel Generator (DG) | ||
| Diesel Generator Power | 15 kW (waje) | 50 kW (Na waje) |
| Lokacin Canja wurin | Kasa da ko daidai da 10 ms | |
| Wasu | ||
| Samar da Makamashi na Shekara-shekara | 1460h mai tasiri rana, Kimanin . 56,765 kWh | 1460h mai tasiri rana, Kimanin. 134554 kWh |
| 1825h mai tasiri rana, Kimanin. 70956 kWh | 1825h mai tasiri rana, Kimanin . 168,193 kWh | |
| Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarfi | 120 kWh, yana goyan bayan ~ 12 h | 300 kWh (goyan bayan ~ 12 h) / 200 kWh (goyan bayan ~ 19h) |
Fa'idodin tsarin kwantena na hasken rana mai naɗewa
Ana shigar da na'urori na photovoltaic na tsarin kwantena na hasken rana a kan firam mai ruɓi a cikin daidaitaccen akwati na 10GP ko 20HQ, don haka ana iya ɗaukar dukkan naúrar a cikin girman kwantena na yau da kullun, kuma ana kiyaye samfuran yayin jigilar kaya. 20HQ - ba tare da ɗorawa daban ba ko ƙasa{10}} hawa don ginawa. Lokacin da rukunin yanar gizon ya rufe ko lodi ya ci gaba, jeri yana ninka baya kuma rukunin yana shirye don wuri na gaba.
Tsare-tsaren PV, baturin LFP, injin inverter da rarrabawa an riga an haɗa su tare a cikin akwati. Hawan panel, racking, filaye na igiyoyi da kayan aiki da suka dace da gina{1}}daga{2}}ananan buƙatun shigar hasken rana ana yin su a masana'anta, don haka ma'aikatan suna buɗewa kuma suna haɗa tsarin maimakon haɗa shi a kan rukunin yanar gizon.
Tsarin kwantena na Rana mai Foldable Polinovel: Saituna biyu
The Foldable Solar Container System ya zo da girma biyu, don haka hasken rana da ma'ajiyar sun dace da wurin maimakon sauran hanyar zagaye.
Dukansu suna gudanar da ƙwayoyin LFP 100Ah a cikin gungu 40.96 kWh - gungu biyu akan 10GP, biyar akan 20HQ.

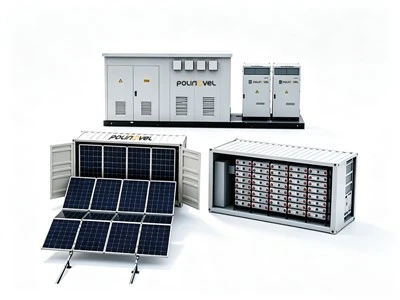

Lokacin da aikin yana buƙatar ƙarin ajiya fiye da ɗaya naúrar ɗabi'a yana ɗauka, kayan aikin baturi iri ɗaya yana haɓaka sama da ƙasaBESS mai cikiiyaka.
10GP · KYAUTA
- Ninka {0} Fitar da PV:38.88 kWp
- LFP ajiya: 80 kWh
- Hybrid inverter: 15 kW
- Modulolin PV: 72 × 540 W
- Nauyi ≈ 7 t
Girma don ƙarami a kashe{0} grid lodi da rukunin yanar gizo inda jigilar kaya ke da mahimmanci.
20HQ · KYAUTA MAI KYAU
- Ninke{0}Fitar PV:92.16 kWp
- LFP ajiya: 200 kWh
- Hybrid inverter: 50 kW
- Modulolin PV: 128 × 540 W
- Nauyi ≈ 14 t
Girma don nauyi mai nauyi ko tsayin lokacin gudu tsakanin sa'o'in rana.
Kashe{0}}grid, grid{1}} daure da ƙarfin haɗaɗɗiya
A matasan inverter canza tsarin tsakaninkashe -grid, grid{1}} daure da gaurayehalaye.
Masu bin diddigin MPPT guda huɗu da taga MPPT 150-850 V suna ci gaba da fitowa a tsaye yayin da rana ke motsawa kuma gajimare suna wucewa.
A kashe -grid
PV yana cajin baturi ta rana; baturi yana ɗaukar kaya bayan duhu.
Grid{0} an ɗaure
Yana aiki tare da grid na gida a 230/400 V, 50/60 Hz don cin abinci ko tallafi.
Hybrid + dizal
Ajiye tare da janareta na waje 15 kW (10GP) ko 50 kW (20HQ), yana canzawa ƙasa da ko daidai da 10 ms don haka nauyi mai mahimmanci ba zai taɓa faɗuwa ba.
Menene Tsarin Kwantenan Rana Mai Naɗi zai iya samarwa?
Fitowa na shekara yana bin sa'o'in rana na gida. A sa'o'i 1,460 masu tasiri na rana ɗaya naúrar ke samarwa
kusan 56,765 kWh akan 10GP ko 134,554 kWh akan 20HQ; a sa'o'i 1,825 wanda ya hau zuwa kusan 70,956 kWh
da 168,193 kWh. Bayan faɗuwar rana baturin yana ɗaukar nauyin wurin na tsawon sa'o'i 12 zuwa 19, ya danganta da girman da zana.
38.88–92.16
kWp ninka - fitar da PV
01
80–200
kWh LFP ajiya
02
56,765–168,193
kWh ana samarwa a kowace shekara
03
12–19 h
lokacin gudu ba tare da rana ba
04
Tsawon tsarin kwantena mai naɗewa na hasken rana
Tsarin kwantena na hasken rana mai naɗewa da aka ƙera don amfani da waje.Kowane tsarin kwantena na Rana mai naɗewa an ƙididdige shi IP65
tare da kariyar lalatawar C5 kuma yana gudana daga digiri -20 zuwa digiri +50, a cikin 0-95% mara zafi, har zuwa tsayin mita 4,000.
Kwayoyin LFP suna riƙe da ƙarfi a cikin kekuna na yau da kullun kuma sun dace da kewayon zafin aiki mai faɗi na wurare masu nisa, na waje.
IP65
C5 lalata
−20 digiri ~ +50 digiri
0-95% RH
har zuwa 4,000 m
Aikace-aikace
Nadawa yana canzawa inda hasken rana ke da ma'ana. Tsarin kwantena na Rana mai naɗewa ya dace da rukunin yanar gizo waɗanda ke buƙatar iya aiki na gaske amma ba za su iya jira tsayayyen ginin ba, ko kuma hakan na iya ci gaba daga baya. Yana zaune tare da fadiKwantenan Solarkewayo don kafaffen, wayar hannu da mafi girma{0}}ayyukan iya aiki.
Shafukan masu nisa da kashe -- tsibirai, yankunan karkara da sansanonin da ba su da tsayayyen grid.
Gina da ƙarfin aikin{0}} ikon rukunin yanar gizon da ke motsawa tare da aikin.
Ma'adinai da masana'antu masu nisa
Amsar gaggawa da bala'i- hasken rana yayi lodin shiga ya buɗe inda grid ɗin ke ƙasa.
Telecom da kayan aiki mai nisa- tsayayye mai ƙarfi don shafukan da ke nesa da grid.
Tsarin Kwantenan Rana Mai Naƙudawa - FAQ
Tambaya: Menene ke sanya Tsarin Kwantenan Rana Mai Naɗewa ya bambanta da kafaffen kwandon hasken rana?
A: An riga an ɗora tsararrun PV akan firam ɗin nadawa a cikin akwati, don haka naúrar ta yi jigilar kaya, tana buɗewa akan rukunin yanar gizon ba tare da keɓancewa ba, kuma tana ninka baya don ƙaura. Kafaffen kwantena har yanzu yana buƙatar ginshiƙansa da ginannen tarkace da wayoyi akan wurin.
Tambaya: Nawa ne hasken rana da ajiya?
A: 38.88 kWp na PV tare da 80 kWh na ajiya akan 10GP, da 92.16 kWp tare da 200 kWh akan 20HQ, ta amfani da 540 W kayayyaki da LFP 100Ah Kwayoyin.
Tambaya: Zai iya gudana ba tare da grid ba, kuma tare da janareta?
A: iya. Yana goyan bayan kashe -grid, grid{2}} daure da aikin gauraya, kuma yana aiki tare da janareta na dizal 15 kW ko 50 kW na waje wanda ke juyawa a ƙasa da ko daidai da 10 ms don ci gaba da kawo kaya masu mahimmanci.
Tambaya: Yaya tsawon lokacin baturi ke aiki ba tare da rana ba?
A: A kusa da 12 zuwa 19 hours, dangane da sanyi da kaya. Batirin LFP yana riƙe da 80 kWh (10GP) ko 200 kWh (20HQ) na makamashi mai amfani.
Tambaya: Wadanne nau'ikan kwantena ne akwai?
A: Naúrar 10GP a kusan tan 7 da naúrar 20HQ a kusan tan 14, kowane jigilar kaya a matsayin akwati mai haɗaɗɗiya.
Tambaya: Wadanne yanayi za ta iya ɗauka?
A: IP65 tare da kariyar lalata C5, -20 digiri zuwa digiri +50, 0-95% ba{6}} zafi mai zafi ba, kuma har zuwa tsayin mita 4,000.
Nemi tsari da farashi
Faɗa mana rukunin yanar gizonku da kayan yau da kullun, kuma za mu dace da Tsarin Kwantenan Rana Mai Naɗi
- 10GP ko 20HQ - zuwa gareshi, sannan aika da takamaiman bayani, lokacin jagora da farashi.
